🙅 楞次定律:感应电流“不乐意”变化🙅 Lenz's Law: The Current That Resists Change

上一片说:变化越快,电越强。可感应电流到底往哪边流、磁铁又会受到什么力?这一片的楞次定律回答:电流不乐意被你改变。 Last leaf: the faster the change, the stronger the current. But which way does the current flow, and what force does the magnet feel? Lenz's law answers: the current is not happy about being changed.

第 1 步:一张拒绝的手掌Step 1: A refusing palm

磁铁兴冲冲地靠近线圈,线圈会热情接纳吗?The magnet rushes toward the coil — will the coil welcome it?

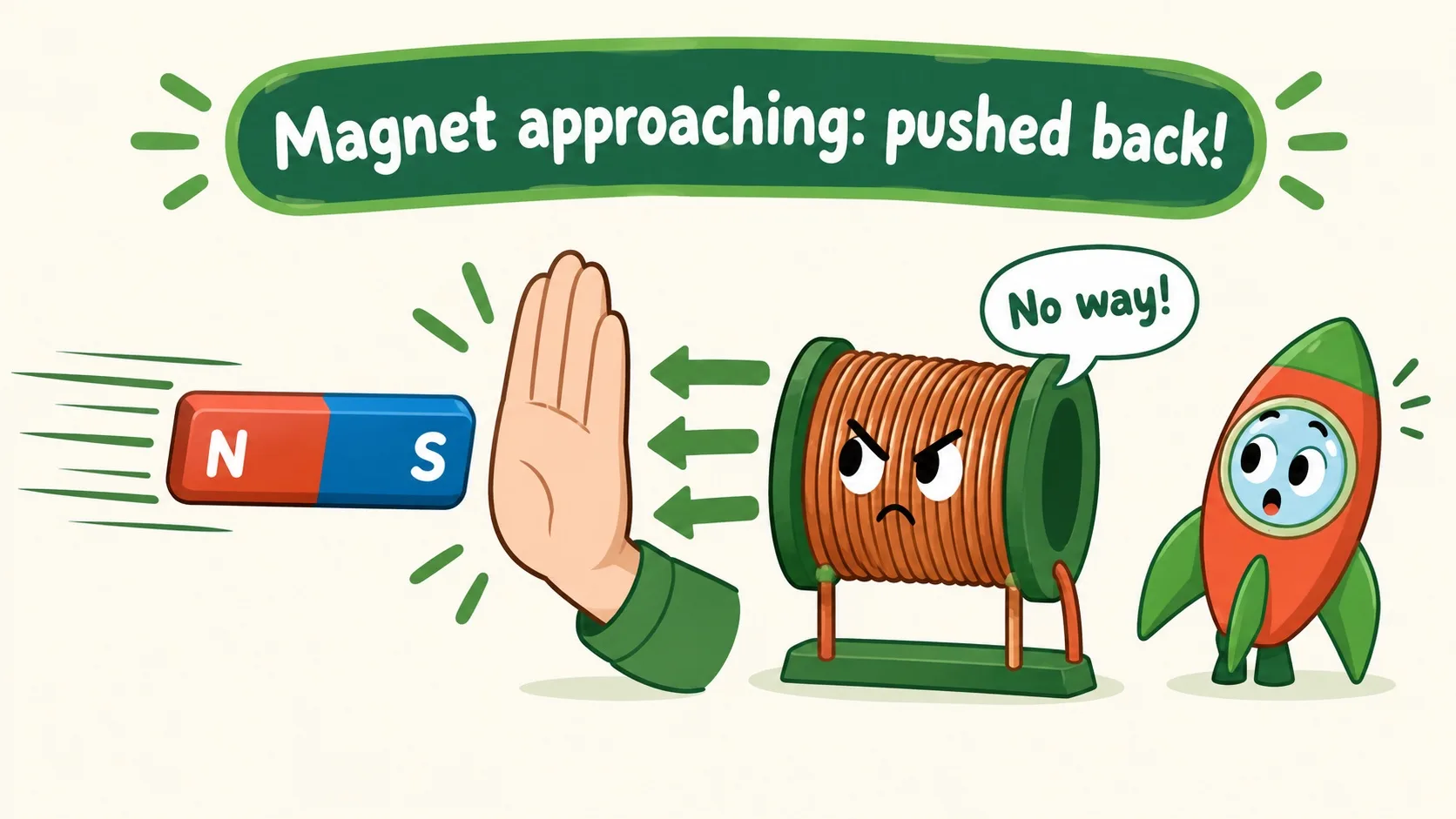

磁铁靠近线圈,被手掌推开
不会。线圈不乐意磁通量被“塞”进来,立刻建立自己的磁场,正面迎着磁铁——像伸出一只手掌,把它往外推。所以磁铁靠近时,感受到的是排斥力:来?拒! No. The coil refuses the incoming flux, builds its own field facing the magnet, and sticks out a palm to push it back. So a magnet moving in feels a repelling force: coming? refused!

那磁铁掉头要走,线圈总该松口气了吧?And when the magnet turns to leave — the coil can relax now, right?

第 2 步:来拒去留Step 2: Come? Push away. Go? Pull back.

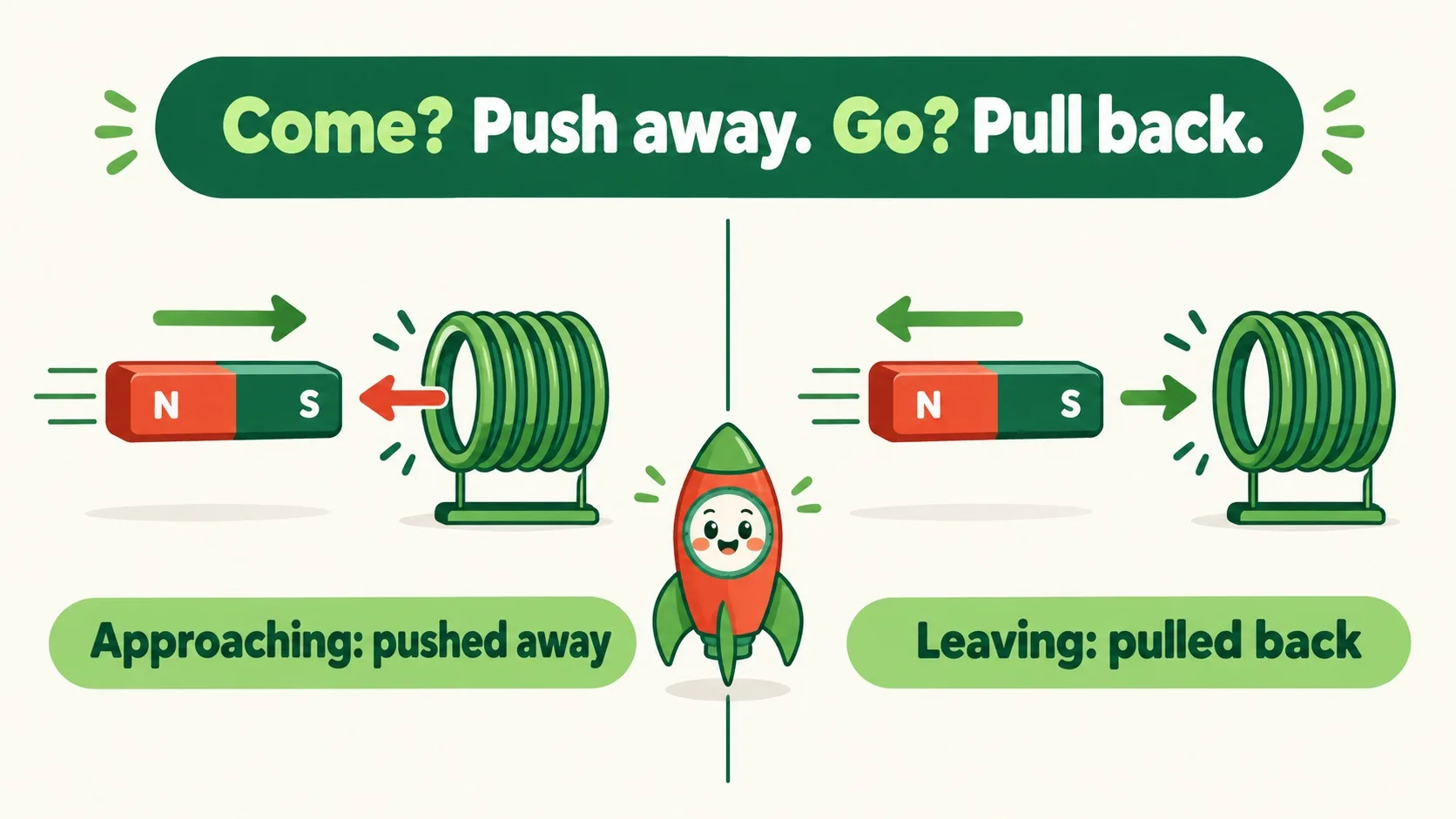

来拒去留:靠近推开,离开拉回
更不行。磁通量要走,比来更让它难受,它马上变得“舍不得”,用力把磁铁往回拉。靠近就推开、离开就拉回,四个字:来拒去留。感应电流的方向,永远朝着“反抗变化”的那一边。 Quite the opposite. Flux leaving upsets it even more, so it holds on and pulls the magnet back. Push when it comes, pull when it goes: four words — oppose the change. The induced current always flows the way that fights the change.

它的“脾气”在实验室里,能闹出多大动静?How loud can this temper get in a lab?

第 3 步:会跳的铝环Step 3: The jumping ring

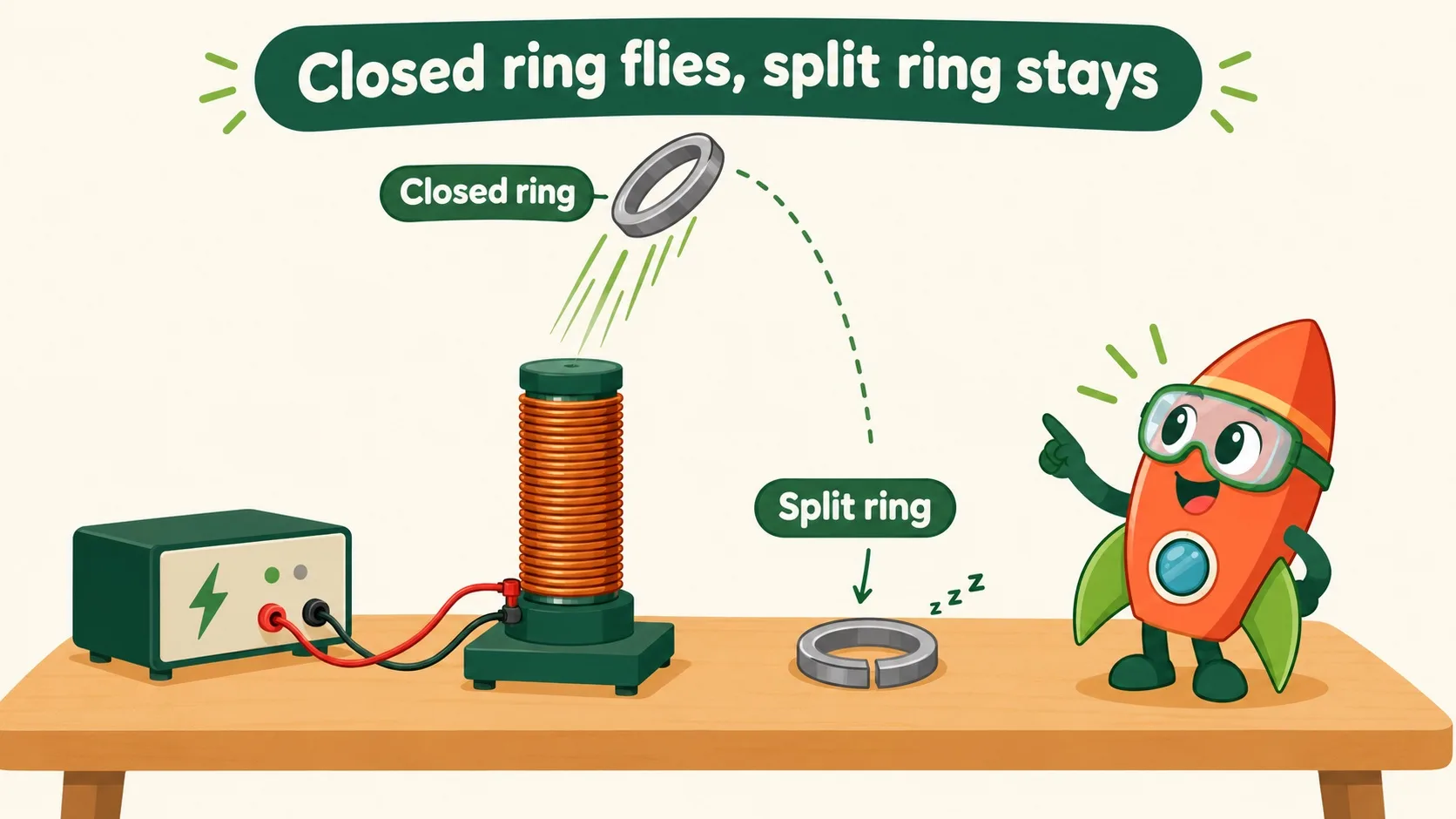

跳跃环实验:闭合铝环被弹开
把铁芯线圈通上交流电,上面套一个闭合铝环——变化的磁场让铝环感应出电流,而铝环的电流拼命抗拒,结果“拒绝”的力量把它直接弹上天!换成有缺口的开口环:电流绕不完整圈,它就乖乖待在原地。 Put a closed aluminum ring over an AC iron-core coil: the changing field induces a current, and that current pushes back so hard the ring is launched into the air! Swap in a split ring with a slit: the current can't complete a loop, and it just sits there.

🎮 你来当小小实验员(1 分钟)🎮 Your turn: the little lab assistant (1 minute)

按提示操作磁铁——靠近、远离、或者停住不动,观察线圈的反应,再判断它使的力、还有电流的方向。4 关等着你。Move the magnet as the mission asks — approach, leave, or hold still — watch the coil's reaction, then judge its force and the current's direction. 4 missions await.

一句话记住它:感应电流总“反抗”引起它的变化——来拒去留,它是能量守恒派来的小卫士。 Remember it in one line: an induced current always opposes the change that made it — push away, pull back; energy conservation's little guardian.
磁铁靠近就推开(排斥),离开就拉回(吸引)——来拒去留Coming? Pushed away. Going? Pulled back. 感应电流的磁场,总跟磁铁磁场的变化对着干The induced field always fights the change in flux 没有变化就没有电流;跳跃环:闭合环被弹飞,开口环不动No change, no current; jumping ring: the closed ring flies, the split ring stays
