📐 三视图：从三个方向看积木📐 Orthographic Views: Seen from Three Directions
上一片里，🧮 小算盘机器人把积木的面、棱、顶点数了个遍。现在它要照着工程师的图纸搭一座积木小房子——图纸上没有立体图，只有三张平平的方格图，却能说清房子的全部。Last leaf, the little calculator robot counted every face, edge and vertex. Now it wants to build a little cube house from an engineer's drawing — no 3D picture on the sheet, just three flat grid views that still tell the whole story.
第 1 步：三个方向，三张图Step 1: Three directions, three views
哪三张？先站到积木的三个方向，各看一眼。Which three? Stand at three sides of the model and take one look from each.

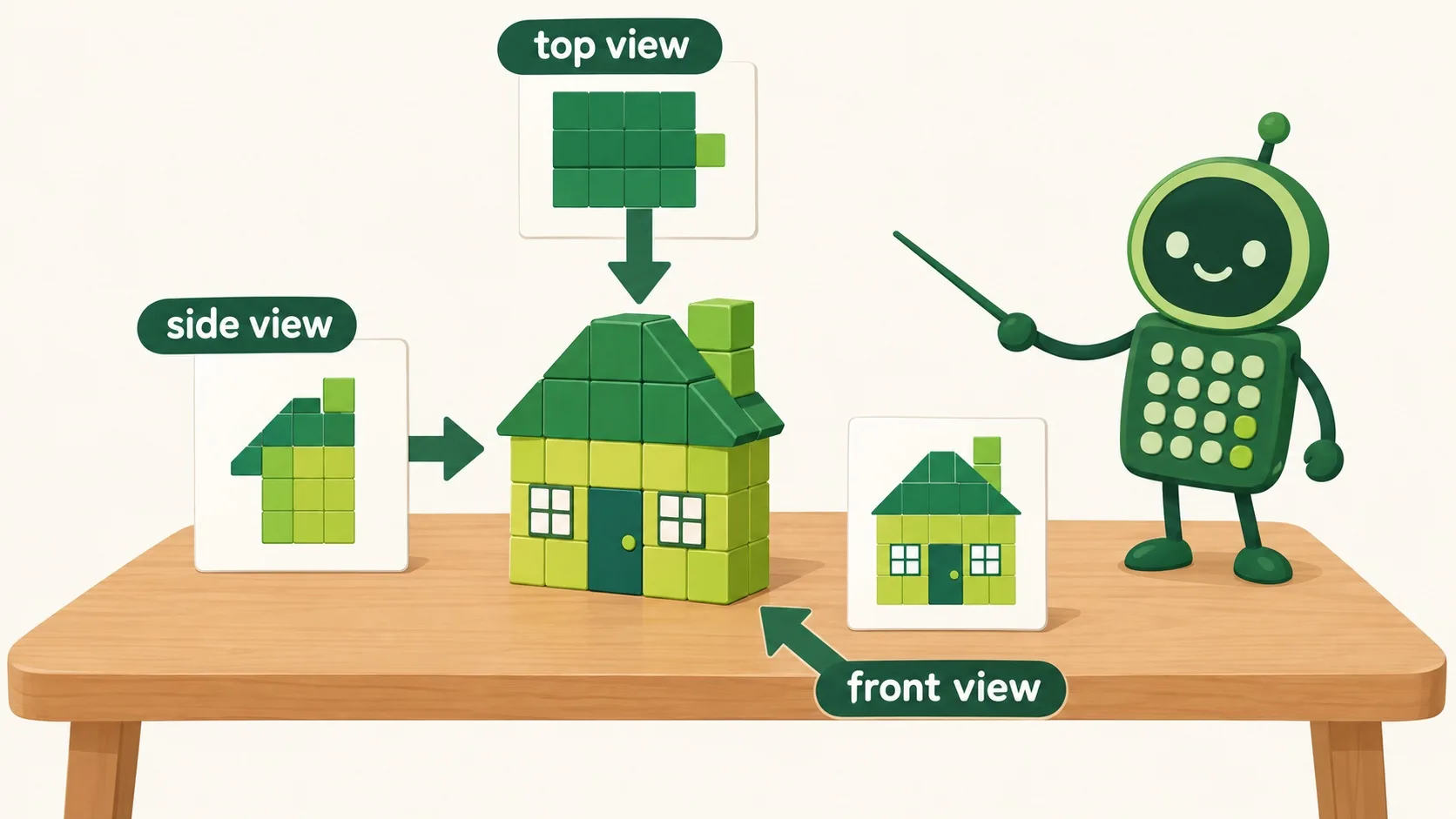

从前面看，得到正视图；从上面看，得到俯视图；从左面看，得到侧视图——三张合起来就是三视图。注意它不是照片：视线像太阳光一样平行，远处不会变小，图上量出的长度就是真实尺寸。Look from the front for the front view; from above for the top view; from the left for the side view — together they are the three-view drawing. It is not a photo: the sight lines are parallel like sunlight, so nothing shrinks with distance, and lengths on paper are true sizes.
那这三张图在图纸上怎么摆？随便放行不行？So how are the three views placed on the sheet — anywhere?

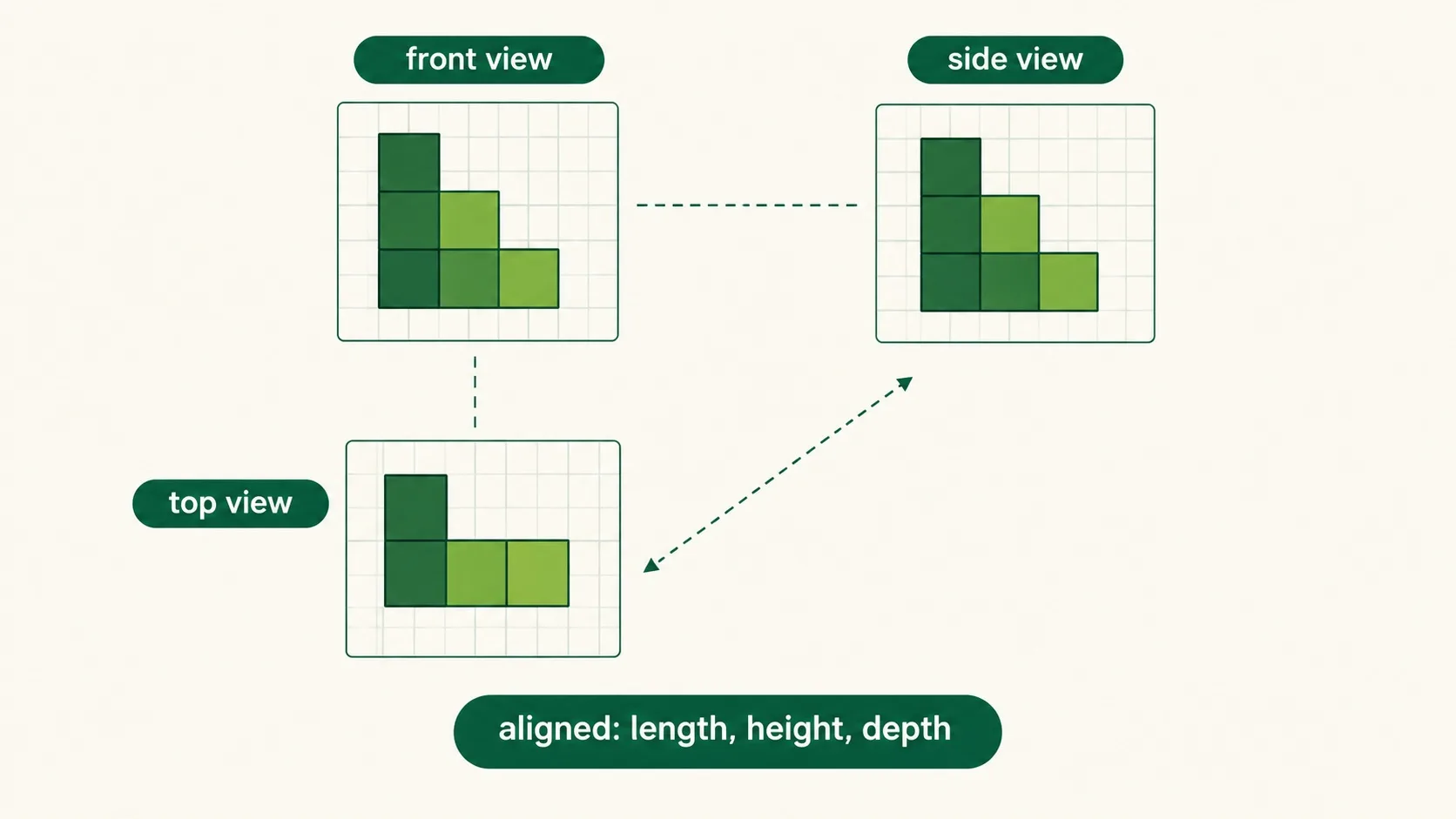

正视图和俯视图上下对正，长度一致（长对正）；正视图和侧视图左右对齐，高度一致（高平齐）；俯视图和侧视图的“深度”相等（宽相等）。对齐之后，看两张图就能推出第三张——这是工程师查错的暗号。Front and top views line up vertically with the same length; front and side views line up horizontally with the same height; top and side views share the same depth. With that alignment, two views are enough to work out the third — it is the engineer's built-in error check.
这套三视图语言，工程师用它造什么？它有没有盲区？What do engineers build with this language — and does it have a blind spot?
第 3 步：工程师的图纸语言Step 3: The engineer's drawing language
小到零件、大到楼房，全世界都用三视图沟通：每根线都能标上真实尺寸，比照片可靠。但注意：一组三视图有时对应不止一种搭法——比如有块积木正好藏在后面看不见。所以工程师会补画更多视图和标注，把每个尺寸钉死。From tiny parts to whole buildings, engineers worldwide talk in three-view drawings: every line can carry its true size, which beats a photo. But watch out: one set of three views can sometimes fit more than one model — a block may hide right behind another. So engineers add more views and notes to pin every size down.
🎮 你来当图纸鉴定师（30 秒）🎮 Your turn: the blueprint examiner (30 seconds)
道理讲完了。下面 4 张图纸各配 4 堆积木——把画得出这组三视图的那堆找出来，第 4 张对上号时会撒花哦。Theory done. Four drawings, four models each — find the block model that matches each set of three views. Confetti waits on the last one.
一句话记住它：三视图 = 从前面、上面、左面看同一个物体，得到正视图、俯视图、侧视图；三张图“长对正、高平齐、宽相等”地摆在一起，就能换回立体的全部尺寸。别忘了：一组三视图有时对应不止一种搭法。Remember it in one line: three views — front, top and side — describe one solid; placed with length, height and depth aligned, they can rebuild every dimension of the object. And remember: one set of three views can sometimes fit more than one model.
正视图 / 俯视图 / 侧视图 = 从前面、上面、左面看Front / top / side view = look from the front, above and the left摆放规则：长对正、高平齐、宽相等Placement rules: length, height and depth all line up平行视线、真实尺寸；一组三视图可能对应不同搭法Parallel sight lines give true sizes; one view set can fit several models
